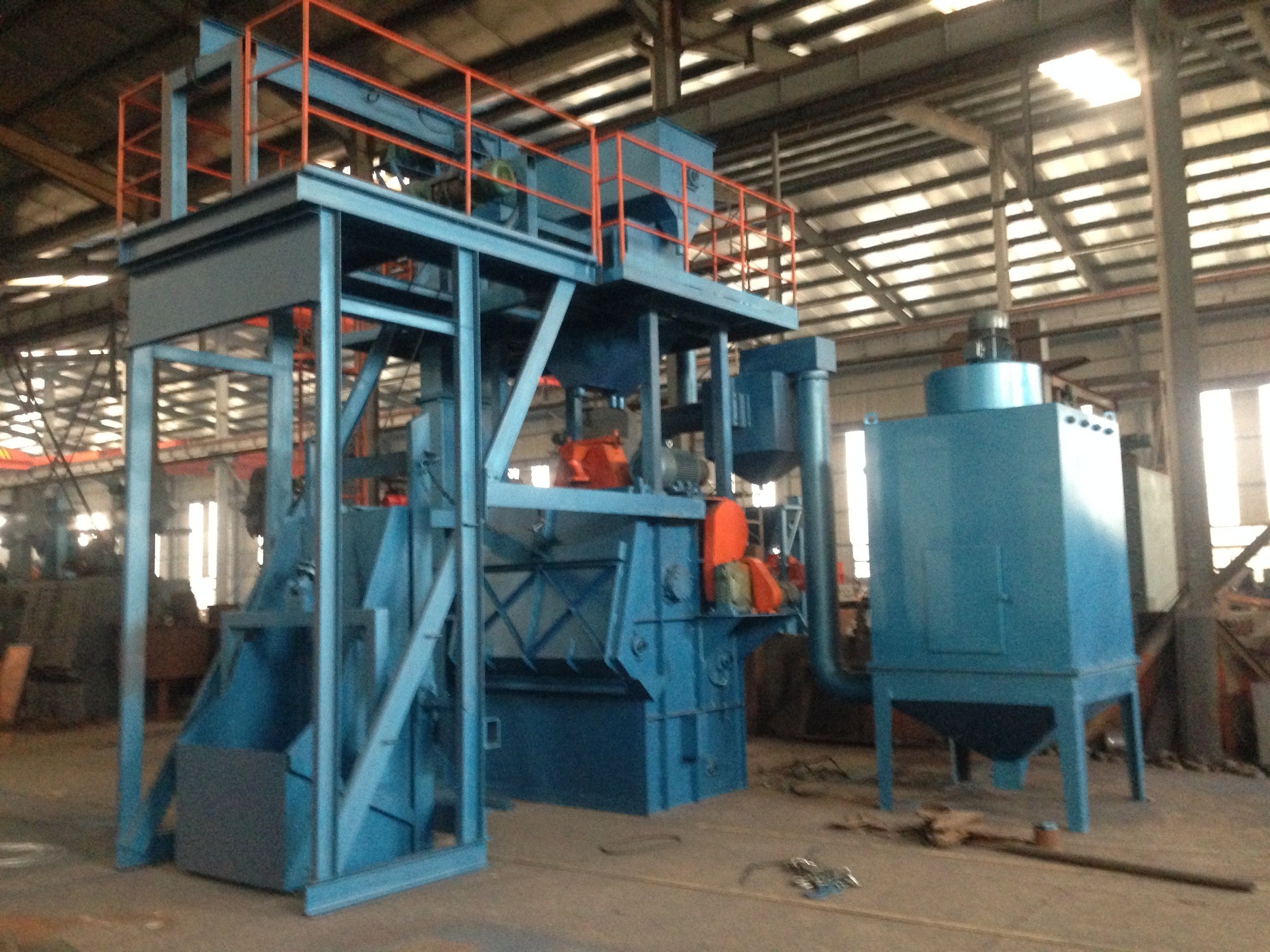

15GN Drum Shot Blasting Machine
15GN Drum Shot Blasting Machine
Model:15GN
Load capacity 0.43m3
Size(diameter*length) Φ1092*1245mm
Max load quantity 1362 kg/ drum
Max single workpieces weight 250kg
Unloading height 1499mm
Loading door side size H1068*W1578mm
Total air volume 8000m3/h
Blasting chamber 6000m3/h
Separator 2000m3/h
Compress air pressure 583 kpa
Projectile storage amount 1200kg
Outline size(L*W*H)4597*3262*5709 mm
